Description

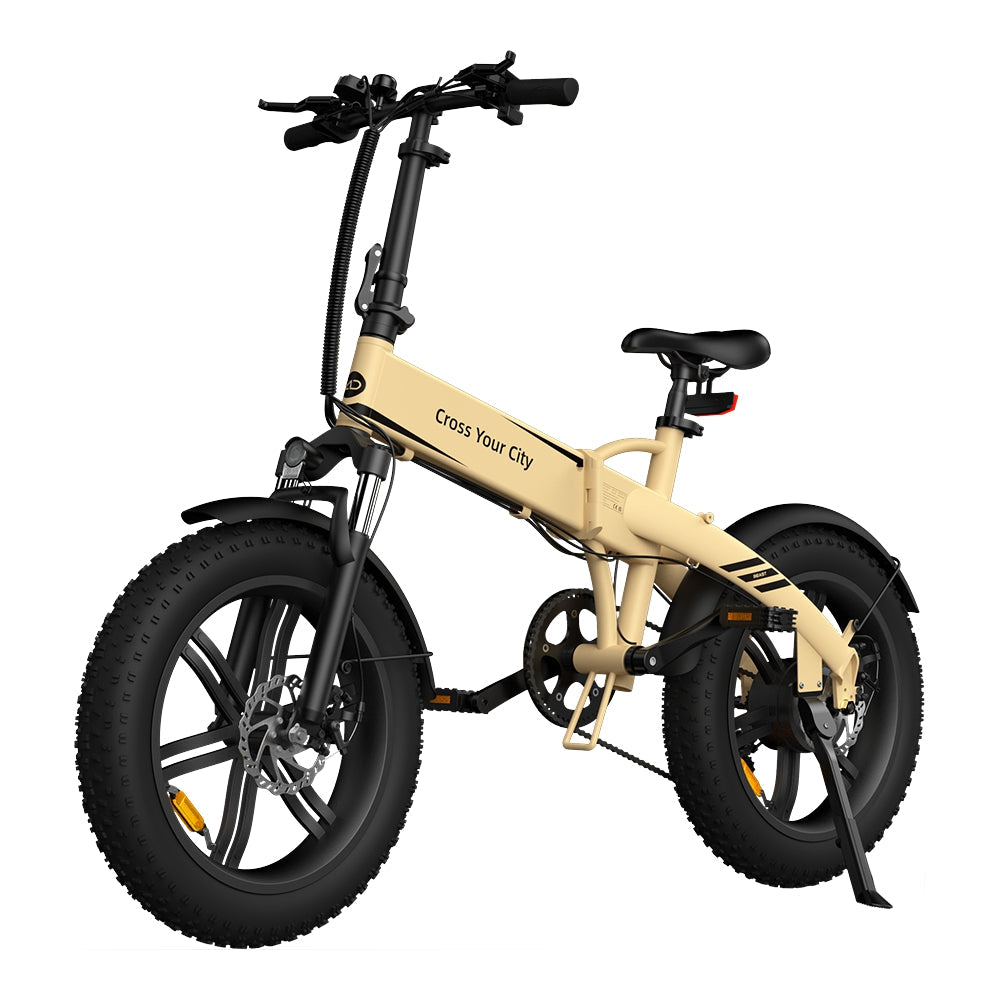

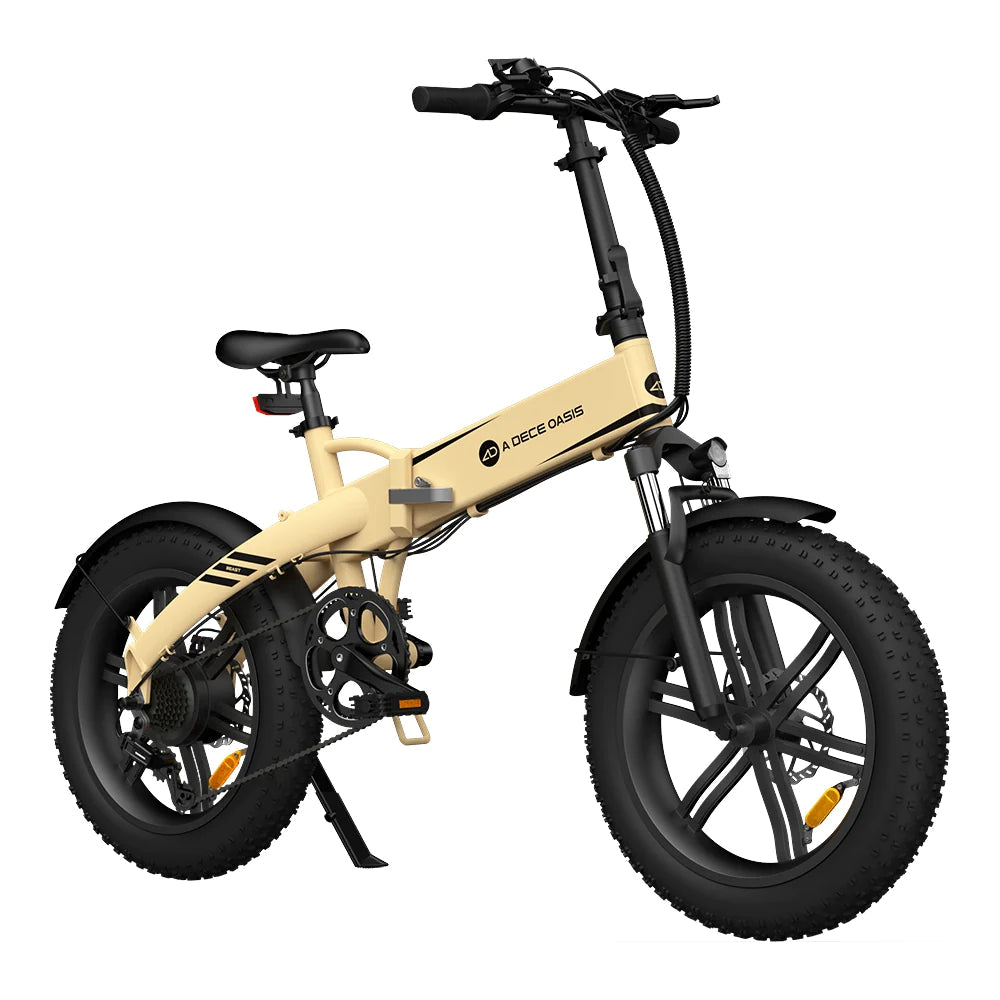

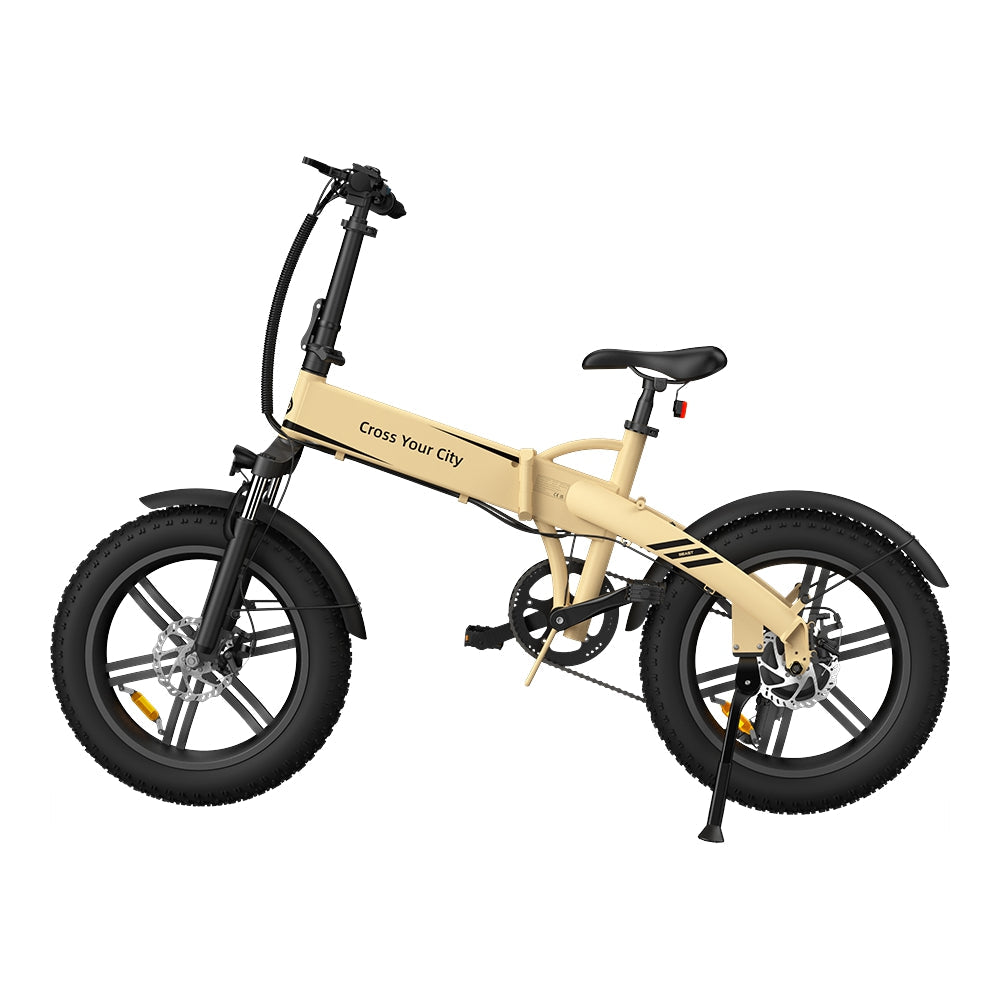

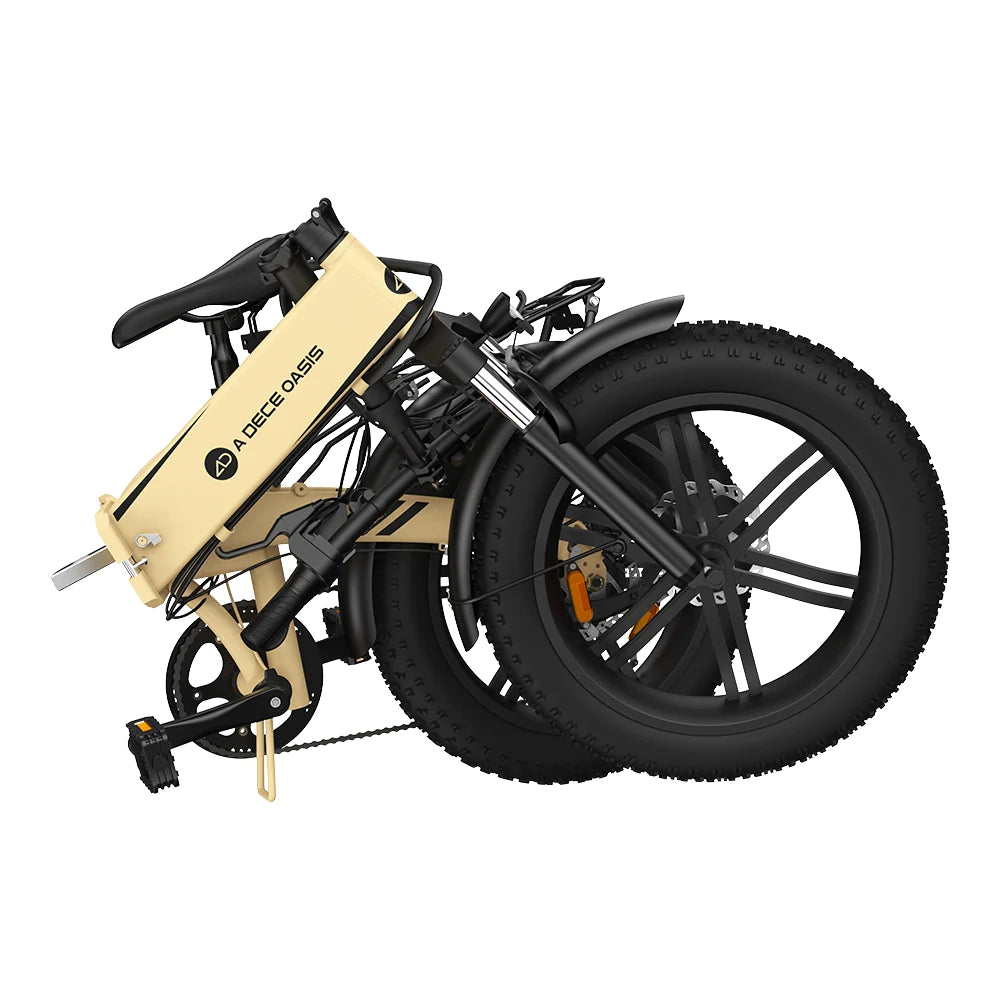

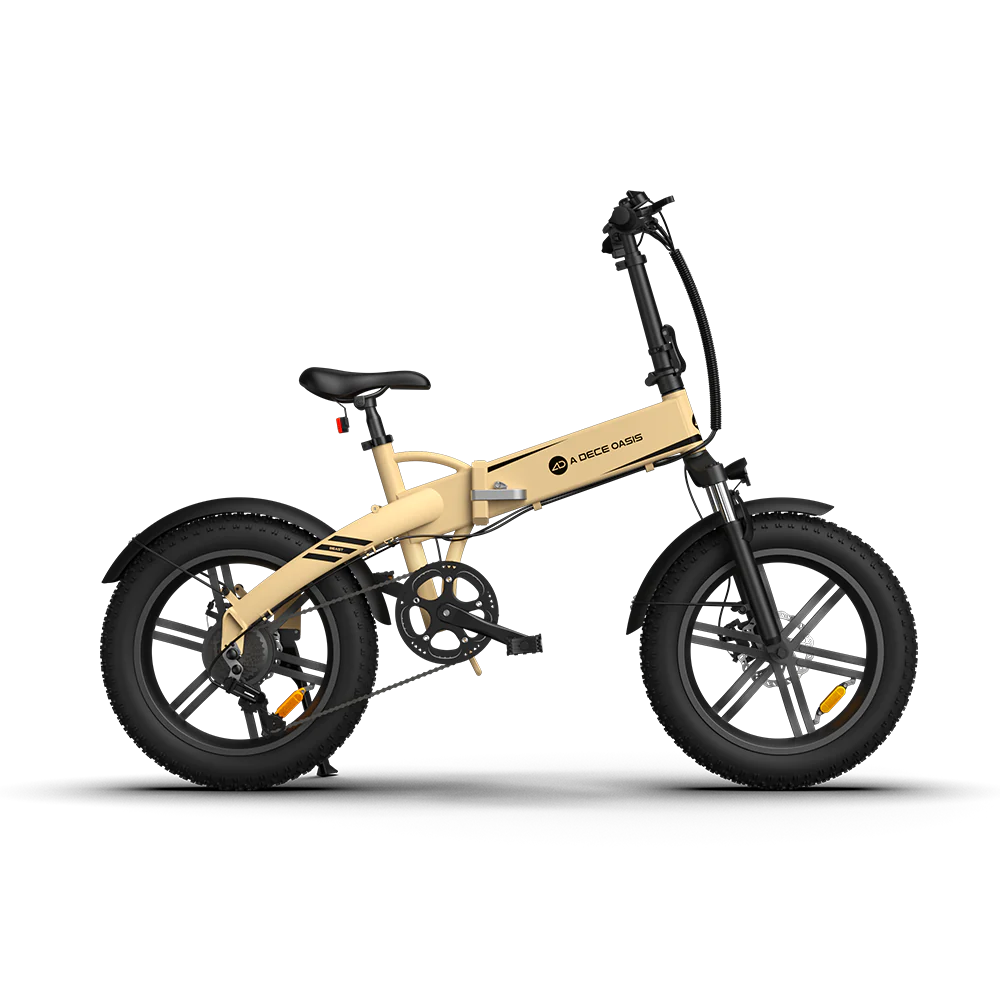

The ADO Beast 20F is a powerful electric bike designed to tackle challenging terrains with ease. Featuring a robust 250W hall brushless gear DC motor, this bike can conquer steep inclines of up to 40°. It is equipped with a torque sensor and a 7-speed Shimano gear system, providing an excellent balance of motor power and range.

Powered by a high-capacity 14.5Ah Samsung battery, the ADO Beast 20F offers an impressive range of up to 120 kilometers, making it suitable for long rides and efficient climbing. The bike's advanced braking system includes dual hydraulic disc brakes, ensuring a smooth and reliable stopping experience, while the 4.0 fat tires enhance comfort and provide a natural riding feel.

The ADO Smart System adds modern functionality, featuring an app that offers intelligent control, navigation, and real-time data such as remaining battery life, current speed, average speed, and trip distances. The IPX7 waterproof and IPS color display ensures visibility even in bright sunlight.

With its sturdy build quality and thoughtful design, the ADO Beast 20F is ideal for riders seeking both performance and comfort in their electric biking experience. It comes with a five-year warranty on the frame and a one-year warranty on other components, reflecting the manufacturer's commitment to quality and customer satisfaction.

Specifications
Feature CE Version International Version
General Spec
Range 120 km max range 120 km max range
Speed 25 km/h 25 km/h
Net Weight 27.3 kg 27.3 kg
Certificate SGS CE SGS CE
Suspension Front fork shock absorbers Front fork shock absorbers
Transmission Shimano 7 Speed Shimano 7 Speed
Tyre Size 20 * 4.0 Inch 20 * 4.0 Inch
Pedal Assist Torque sensor Torque sensor
Assist Intelligent 0-3 level pedal assist 0-3 level pedal assist
Rider Heights 165cm-200cm 165cm-200cm
Weight Capacity 120kg 120kg
Working Temperature -10~40°C -10~40°C
Electronic Spec
Motor 250W 250W
Battery 36V/14.5Ah 36V/14.5Ah
Throttle Without throttle Thumb throttle
Charging Time 5-7 hours 5-7 hours
Display IPS color display, clearly under the sunshine (IPX7) IPS color display, clearly under the sunshine (IPX7)
Torque 65N.m 65N.m
Battery Management System BMS Included BMS Included
Components Spec
Frame Aluminum alloy frame Aluminum alloy frame
Brakes Hydraulic disc brakes Hydraulic disc brakes
Wheels Double walled aluminum Double walled aluminum
Fork Shock-absorption Shock-absorption
Headlight IPX5 waterproof 1200lumen IPX5 waterproof 1200lumen
Tail Light Reflector tail light Reflector tail light
Chain Ring Pro wheel 52T/170MM Pro wheel 52T/170MM
Pedals Folding pedals Folding pedals
Seat Shock absorbing seat Shock absorbing seat
Waterproof IPX5 IPX5

ADO Beast 20F

Regular price $2,999.00
